Smooth Phenol Plywood
UK Importers
Nationwide Delivery
Phenol Smooth Two Sides Birch Plywood
Birch plywood overlaid with smooth phenol on both sides
Edges sealed in water-proof paint to prevent moisture ingress
A hard-wearing panel for concrete formwork, transport industry & construction
Birch Plywood Core
120g or 240g Phenolic Film
Edges Sealed
| Width (mm) | Lengths (mm) |
|---|---|
| 1220 or 1250 | 2440 / 2500 / 2745 / 3000 / 3050 / 3340 / 3660 |
| 1500 or 1525 | 2440 / 2500 / 2745 / 3000 / 3050 / 3340 / 3660 |
| 1830 or 1850 | 3050 / 3340 / 3660 / 3850 |
| 2150 | 3050 / 3340 / 3850 / 4000 |
| 2290 | 4000 |
| 2440 or 2500 | 1220 / 1250 (long-grain panels) |
| Size | Colour |
|---|---|
| 9mm 2440 x 1220 | Dark Brown |
| 9mm 1525 x 3050 | Dark Brown |
| 12mm 1220 x 2440 | Dark Brown |
| 15mm 1220 x 2440 | Dark Brown |
| 18mm 1220 x 2440 | Dark Brown |
| 18mm 1220 x 2500 | Dark Brown |
| 18mm 1525 x 3050 | Dark Brown |
| 21mm 1220 x 2440 | Dark Brown |
| 24mm 1220 x 2440 | Dark Brown |
| Thickness | No. of Plies | Small Packing | Large Packing |
|---|---|---|---|
| 6.5mm | 5 ply | 65 sheets | 90 sheets |
| 9mm | 7 ply | 44 sheets | 65 sheets |
| 12mm | 9 ply | 33 sheets | 50 sheets |
| 15mm | 11 ply | 26 sheets | 40 sheets |
| 18mm | 13 ply | 22 sheets | 35 sheets |
| 21mm | 15 ply | 19 sheets | 30 sheets |
| 24mm | 17 ply | 17 sheets | 25 sheets |
| 27mm | 19 ply | 14 sheets | 22 sheets |
| 30mm | 21 ply | 13 sheets | 20 sheets |
| 35mm | 25 ply | 12 sheets | 17 sheets |
| 40mm | 29 ply | 10 sheets | 15 sheets |
Request a Quote
Specifications
Applications
for Smooth Faced Birch Plywood

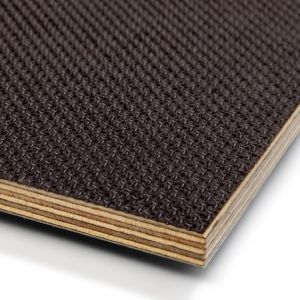

Our other coated panels...
Stocked Items
Cutting Service
Thickness & Packing
Panel Sizes
Popular sizes, usually held in stock
Sizes available from the mill
Bespoke cut sizes also available
Colours

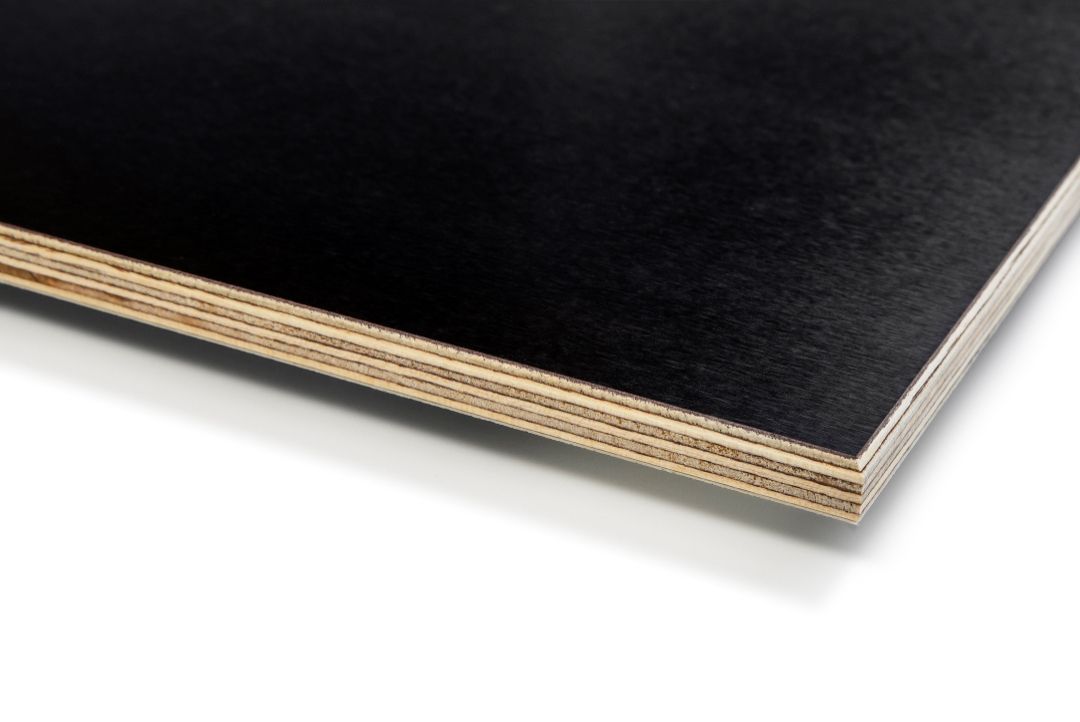

Dark brown is the standard colour
Other colours are available to forward order

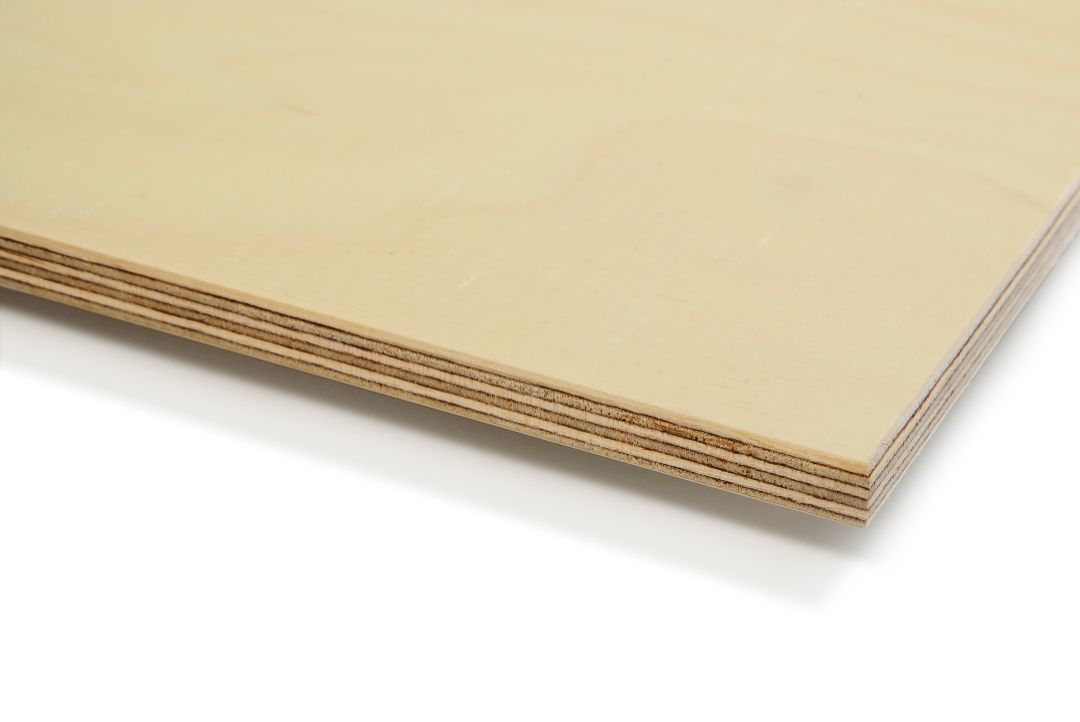

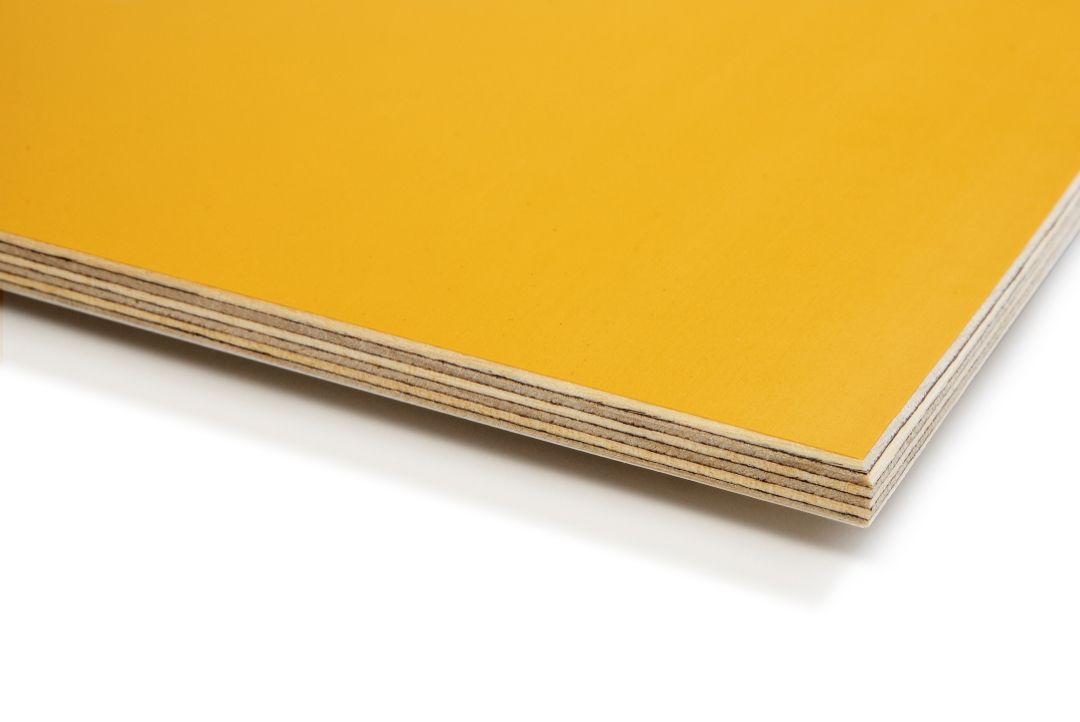

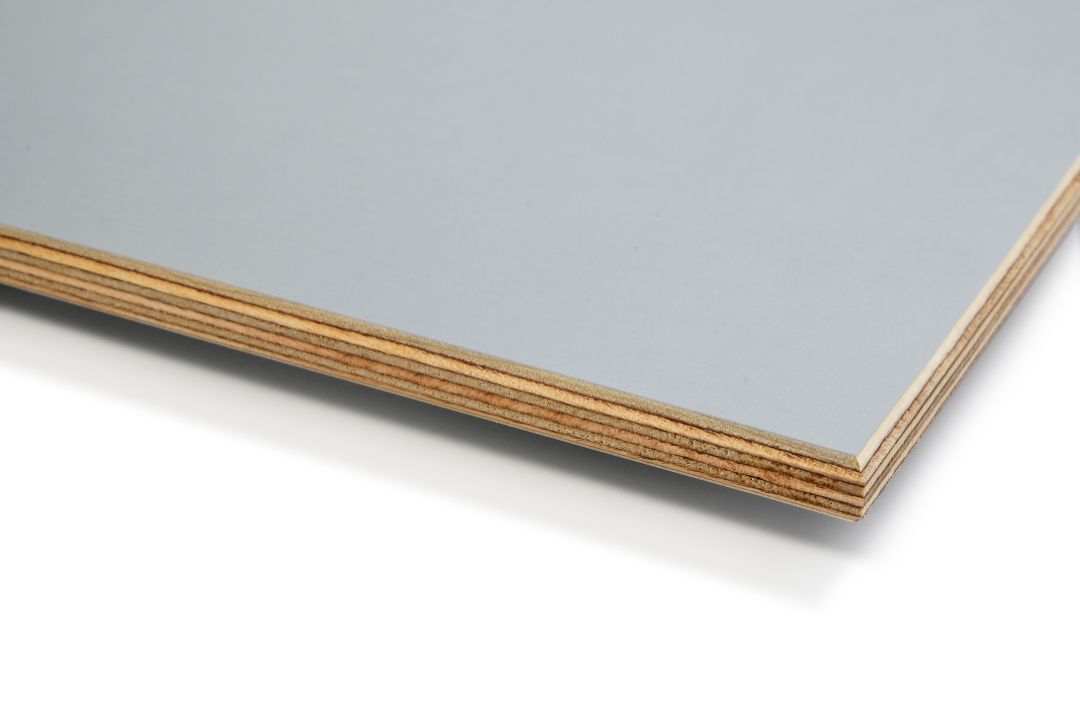

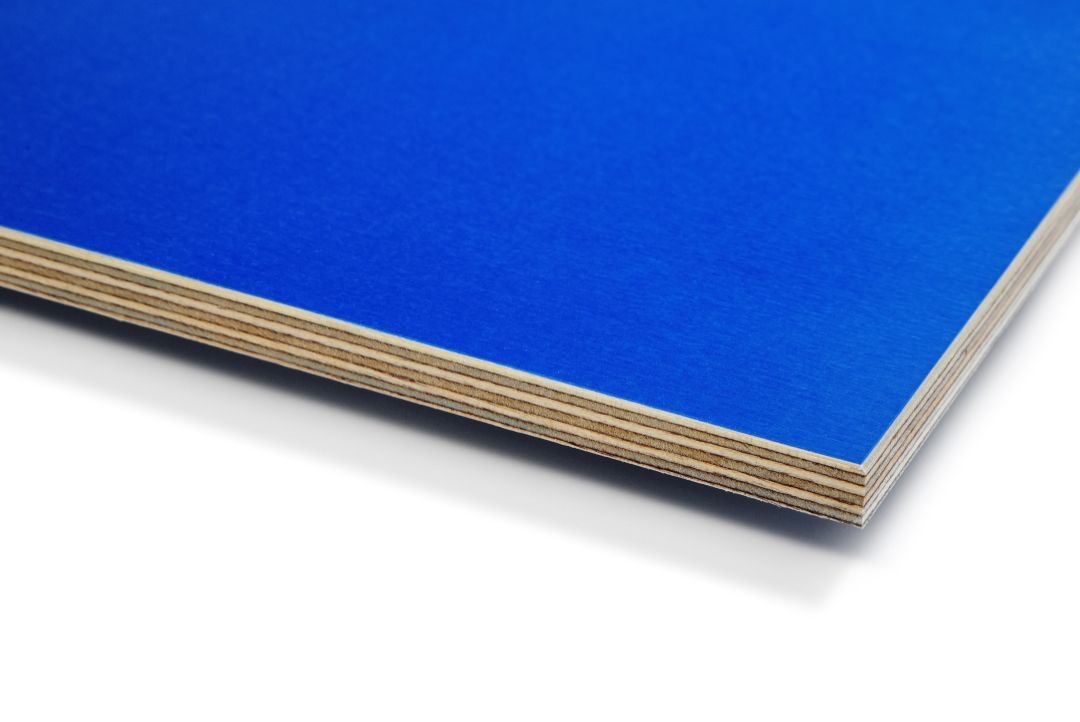

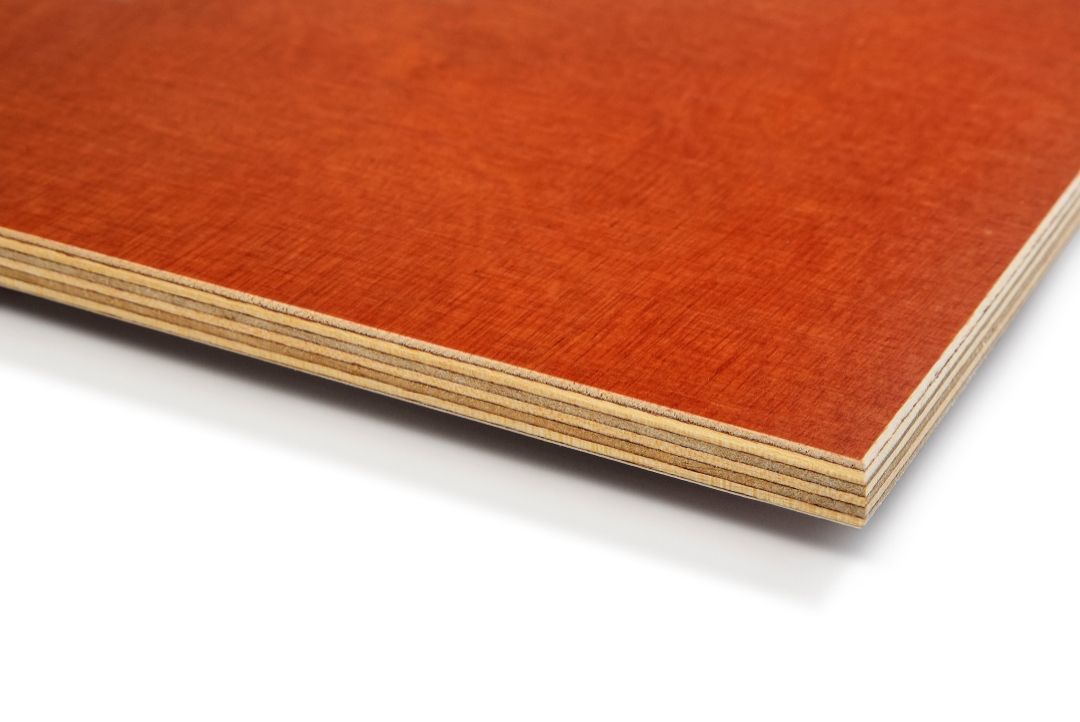

Black - Light Brown - Yellow - Green - Honey - Blue - Light Grey - Silver Grey - Opal White
Phenol smooth faced plywood is not manufactured or offered as a decorative panel.
We only recommend specifying for industrial / light industrial and utility applications.
As this is intended for industrial applications, minor visual defects (rippling, blemishes, overlaps) are permitted in the grading rules.
Phenol film is not UV fast and the colour will deteriorate over time.
Melamine Resin Overlay
Phenol Resin Overlay
We offer a full cutting and processing service
Router, drill, chamfer or machining
Edges are sealed with external paint
From stock with UK-wide delivery
Cut to size & CNC machined panels
For more information on our cutting & machining services
We tend to hold stock of the items below
Fast UK-wide delivery
Scarf-joined panels
Larger sizes than shown are possible. Panels would be scarf-jointed.
Phenol Overlay
Paper impregnated with phenol resin
Moisture and chemical resistant. Does not crack
Available in 120g and 240g
Moisture Content
10% (+/- 2%) to EN315 and DIN 68705
Formaldehyde
In accordance with the standard EN 13986
the formaldehyde emission meets the Class E1 requirements
(test method EN 717 Part 2)
Edge Sealing
Exterior acrylic paint to prevent moisture ingress
To match phenol face colour
Bonding
EN314-3 class 3 exterior conditions
Dark brown glue-line, phenol resin
Weight
640-700 kg/M3
Flooring
Stage Floors, Internal Flooring
Farming
Poultry House / Pullet House
Sheep Pens / Pig Pens
Vehicle & Transport Lining
Van Interiors, Trailer Beds
We offer a full cut to size and edge sealing service
Concrete Formwork
Shuttering Plywood & Formwork Panels
Known as Riga-Form or Wisa-Form
Further details can be found HERE
Plies
The number of laminations
1.4mm thick, laid-up with grain alternating at 90 degrees
Packing
Quantities shown are standard mill packing
For special order items, pack quantities can be altered
| Metric | Imperial |
|---|---|
| 2440 x 1220 | 8ft x 4ft |
| 1250 x 2500 | |
| 1220 x 3050 | 4ft x 10ft |
| 1525 x 3050 | 5ft x 10ft |
