Smooth Mesh Plywood
UK Importers
Nationwide Delivery

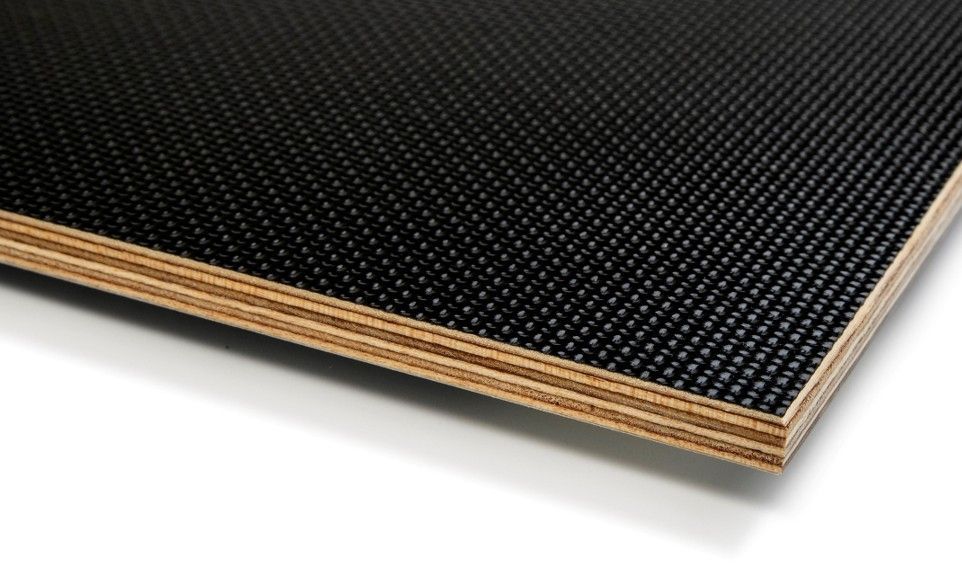

Phenol Smooth Mesh Faced Birch Plywood
Birch Plywood Core
120g, 240g or 440g Phenolic Film
Smooth Mesh surface with a Smooth Phenol Reverse
Smooth Mesh Two Sides Available
| Width (mm) | Lengths (mm) |
|---|---|
| 1220 or 1250 | 2440 / 2500 / 2745 / 2750 / 3000 / 3050 |
| 1500 or 1525 | 2440 / 2500 / 2745 / 2750 / 3000 / 3050 |
| Thickness | No. of Plies | Small Packing | Large Packing |
|---|---|---|---|
| 6.5mm | 5 ply | 65 sheets | 90 sheets |
| 9mm | 7 ply | 44 sheets | 65 sheets |
| 12mm | 9 ply | 33 sheets | 50 sheets |
| 15mm | 11 ply | 26 sheets | 40 sheets |
| 18mm | 13 ply | 22 sheets | 35 sheets |
| 21mm | 15 ply | 19 sheets | 30 sheets |
| 24mm | 17 ply | 17 sheets | 25 sheets |
| 27mm | 19 ply | 14 sheets | 22 sheets |
| 30mm | 21 ply | 13 sheets | 20 sheets |
| 35mm | 25 ply | 12 sheets | 17 sheets |
| 40mm | 29 ply | 10 sheets | 15 sheets |
Request a Quote
Specifications
Applications
Available on forward order only in full pack volumes
for Smooth Mesh Faced Birch Plywood
Our coated panels...
Availability
Cutting Service
Thickness & Packing
Panel Sizes
Sizes available from the mill
Bespoke cut sizes also available
Colours

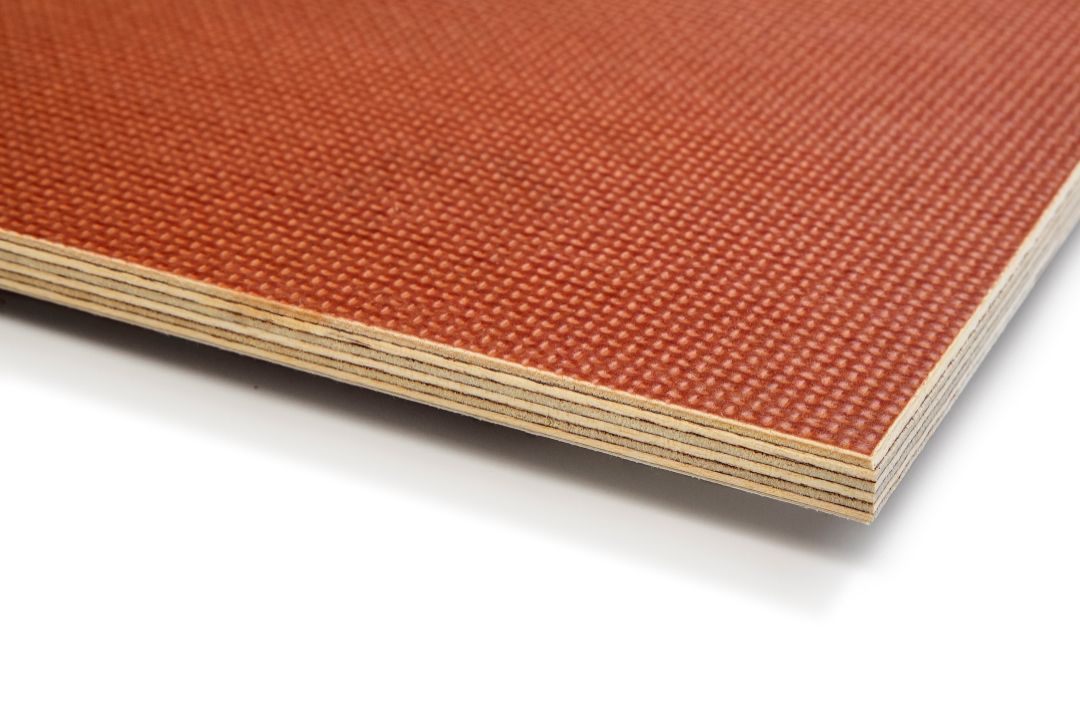

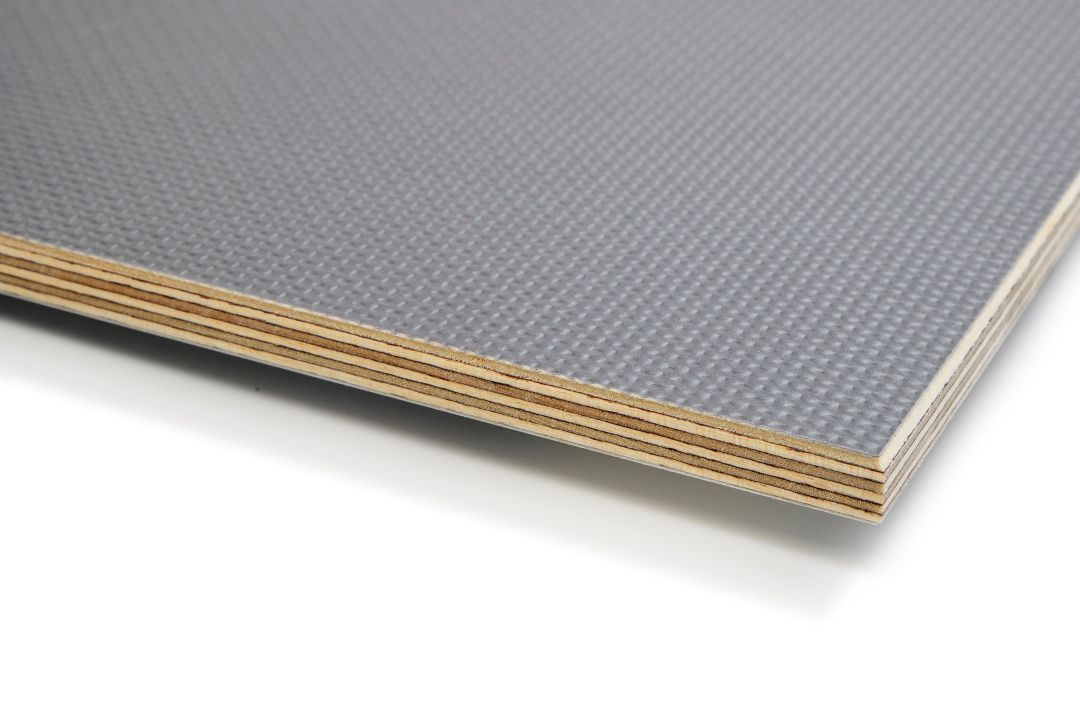

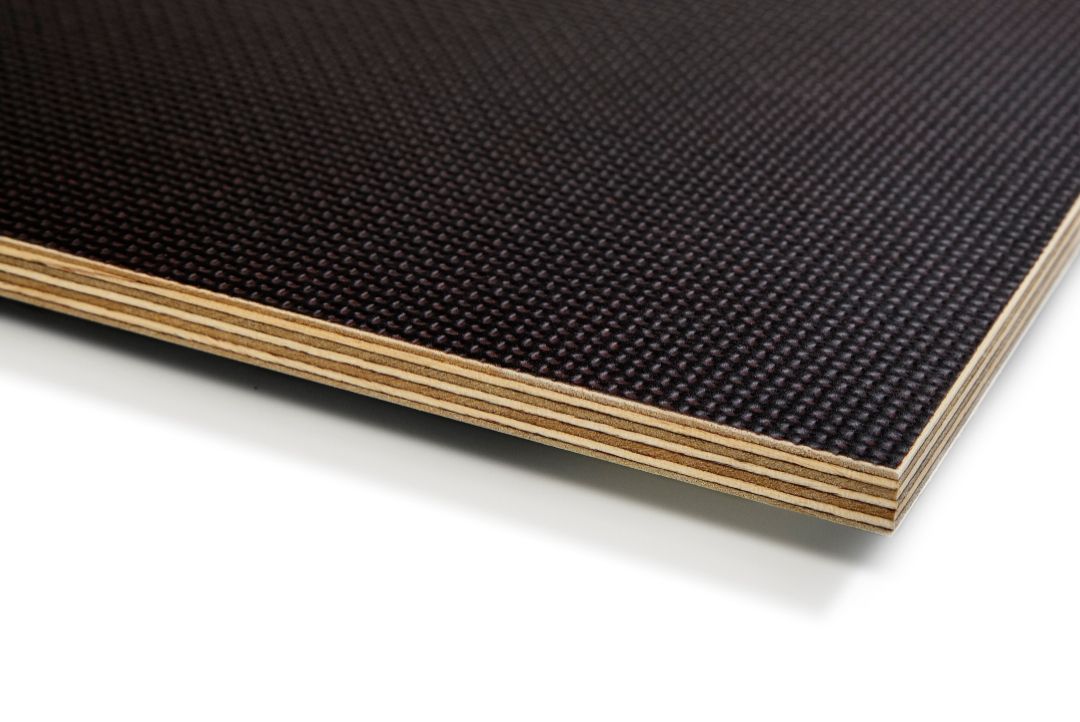

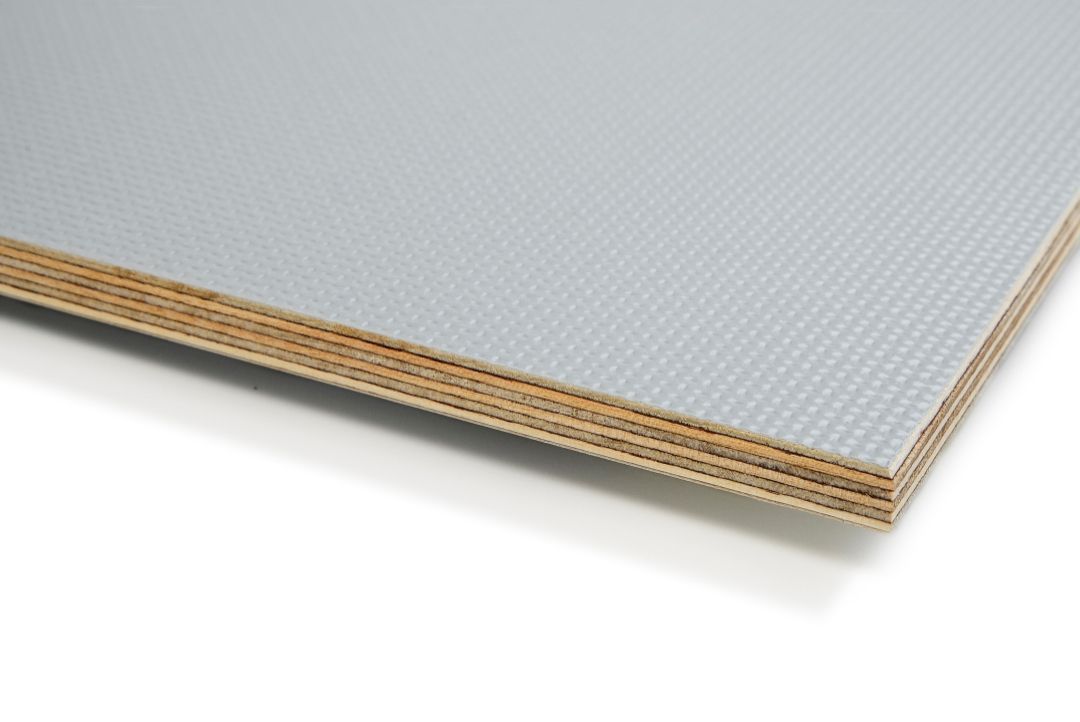

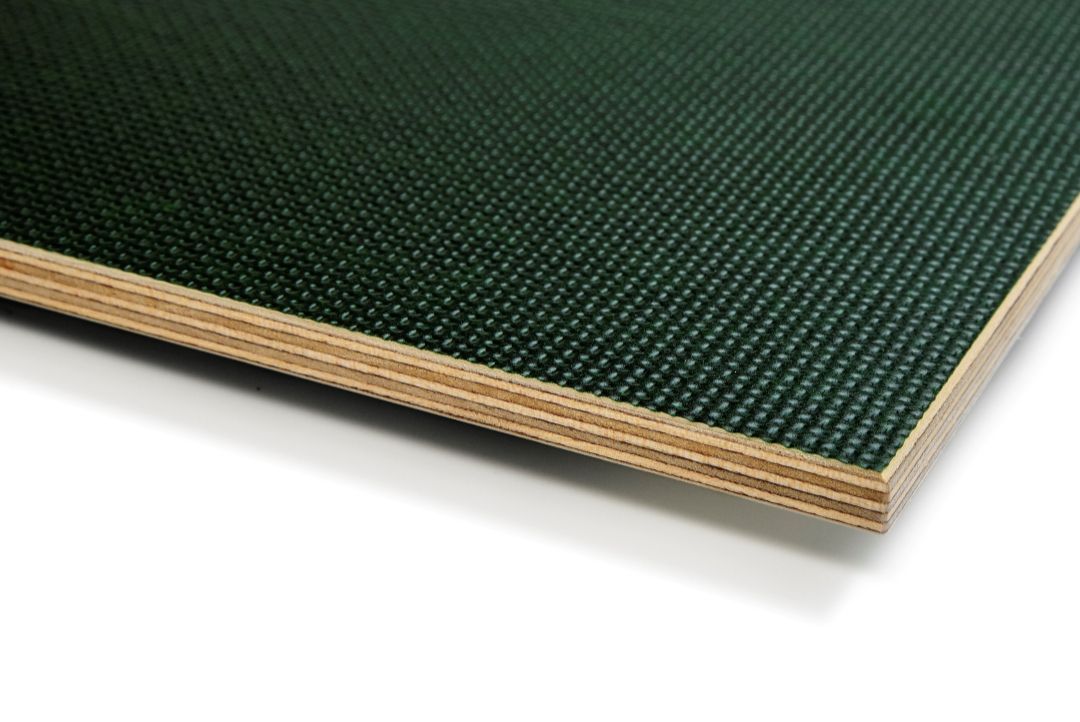

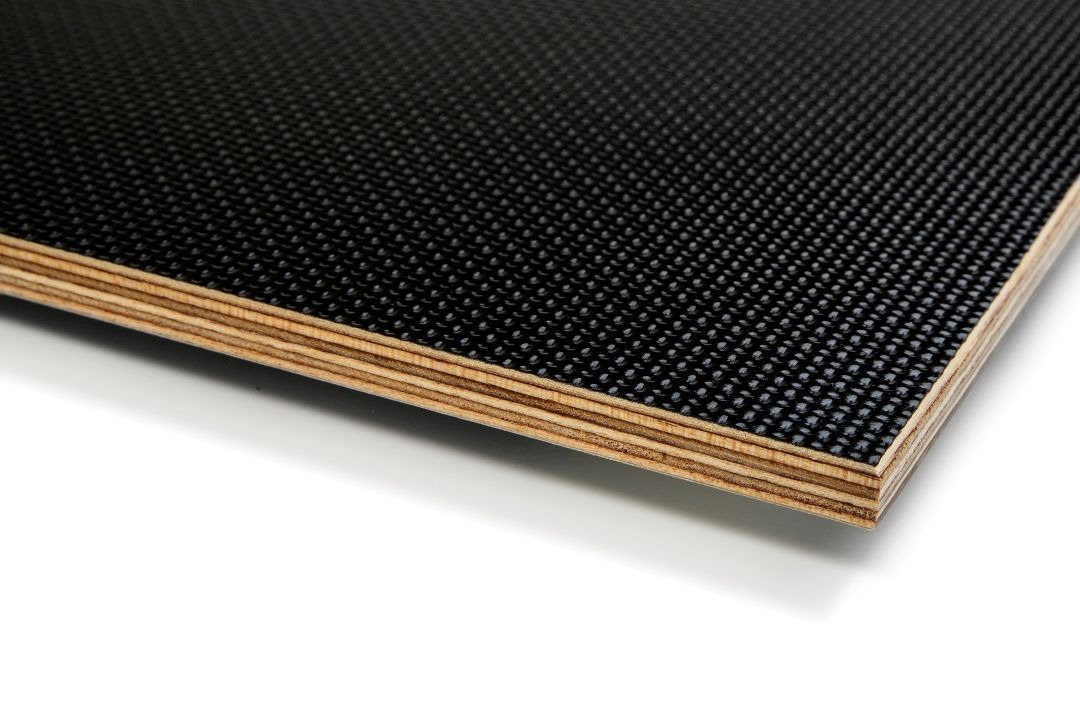

Black - Dark Brown - Light Brown - Silver Grey - Light Grey - Blue - Green - Yellow
We recommend specifying for commercial and light industrial applications.
Minor visual defects (rippling, blemishes, overlaps) are permitted in the grading rules.
Standard phenol film is not UV fast.
If left outside or in direct sunlight, the colour will deteriorate over time.

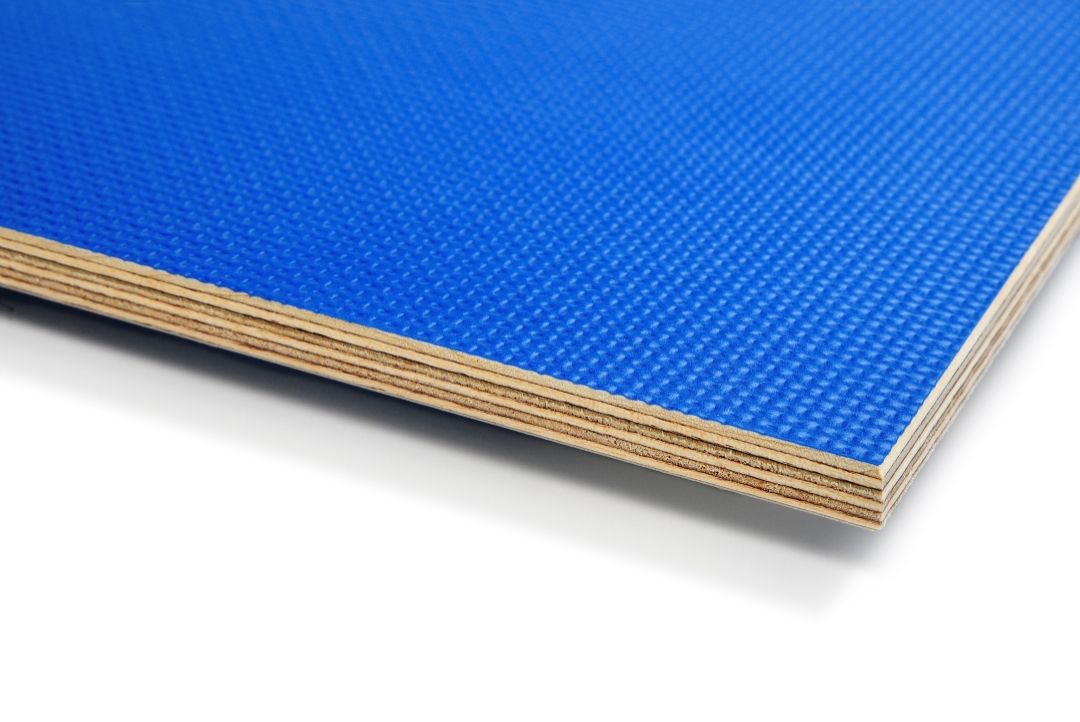

Blue overlay uses a UV resistant film, impregnated with special thermosetting mixture of polymers containing amino resins.
We offer a full cutting and processing service
Router, drill, chamfer or machining
Edges are sealed with external paint
Cut to size & CNC machined panels
For more information on our cutting & machining services
Special order
Minimum quantity: full packs per thickness and colour
Contact us for current lead-times
Overlay
Phenol or UV resistant film hot pressed onto surface
Moisture and chemical resistant. Does not crack
Available in 120g, 220g, 440g
Mesh Pattern
Small mesh: 4.5 mesh per 1cm
Large mesh: 2.5 mesh per 1cm
Formaldehyde
In accordance with the standard EN 13986
the formaldehyde emission meets the Class E1 requirements
(test method EN 717 Part 2)
Moisture Content
10% (+/- 2%) to EN315 and DIN 68705
Edge Sealing
Exterior acrylic paint to prevent moisture ingress
To match phenol face colour
Bonding
EN314-3 class 3 exterior conditions
Dark brown glue-line, phenol resin
Weight
640-700 kg/M3
Wear Resistance
Taber Test (EN 438-2)
400 revolutions (120g film) / 900 revolutions (240g film)
2,500 revolutions (440g film)
Vehicle Flooring
Durable hard wearing surface with high wear resistance
Used on trailer beds / trailer floors
Joinery
Decorative & visually attractive for high-end joinery work.
Stage Floors
Available in thick panels. Cut to size for metal frameworks.
Excellent strength to weight ratio
Case Making
Smooth textured uni-directional pattern
Plies
The number of laminations
1.4mm thick, laid-up with grain alternating at 90 degrees
Packing
Quantities shown are standard mill packing
For special order items, pack quantities can be altered
Smooth Mesh
Textured Pattern
Functional
Decorative
Hard Wearing
Smooth Mesh Plywood
UK Importers
Nationwide Delivery
Phenol Faced
Smooth Mesh
Birch Plywood
Functional
Decorative
Hard Wearing
Birch Plywood Core
120g, 240g or 440g
Phenolic Film
Smooth Mesh surface with a Smooth Phenol Reverse
Also available:
Smooth Mesh Two Sides
| Thick | No. of Plies | Small Packing | Large Packing |
|---|---|---|---|
| 6.5mm | 5 ply | 65 sheets | 90 sheets |
| 9mm | 7 ply | 44 sheets | 65 sheets |
| 12mm | 9 ply | 33 sheets | 50 sheets |
| 15mm | 11 ply | 26 sheets | 40 sheets |
| 18mm | 13 ply | 22 sheets | 35 sheets |
| 21mm | 15 ply | 19 sheets | 30 sheets |
| 24mm | 17 ply | 17 sheets | 25 sheets |
| 27mm | 19 ply | 14 sheets | 22 sheets |
| 30mm | 21 ply | 13 sheets | 20 sheets |
| 35mm | 25 ply | 12 sheets | 17 sheets |
| 40mm | 29 ply | 10 sheets | 15 sheets |
Request a Quote
Specifications
Applications
Phenol Overlay
Phenol or UV resistant film hot pressed onto surface
Moisture and chemical resistant. Does not crack
Available in 120g, 220g, 440g
Wear Resistance
Taber Test (EN 438-2)
400 revolutions (120g film)
900 revolutions (240g film)
2,500 revolutions (440g film)
Formaldehyde
In accordance with the standard EN 13986
the formaldehyde emission meets the Class E1 requirements (test method EN 717 Part 2)
Edge Sealing
Exterior acrylic paint to prevent moisture ingress
To match phenol face colour
Mesh Pattern
Small mesh: 4.5 mesh per 1cm
Large mesh: 2.5 mesh per 1cm
Weight
640 - 700 kg/M3
Moisture Content
10% (+/- 2%) to EN315 and DIN 68705
Bonding
EN314-3 class 3 exterior conditions
Dark brown glue-line, phenol resin
Vehicle Flooring
Durable hard wearing surface
High wear resistance
Used on trailer beds / trailer floors
Joinery
Decorative & visually attractive
for high-end joinery work
Stage Floors
Available in thick panels
Cut to size for metal frameworks.
Excellent strength to weight ratio
Case Making
Smooth textured uni-directional pattern
for Smooth Mesh Faced
Birch Plywood
Our coated panels
Availability
Cutting Service
Thickness
& Packing
Panel Sizes
Sizes available from the mill
Bespoke cut sizes also available
Colours
Black - Dark Brown - Light Brown
Silver Grey - Light Grey
Blue - Green - Yellow
We recommend specifying for commercial and light industrial applications.
Minor visual defects
(rippling, blemishes, overlaps)
are permitted in the grading rules.
Standard phenol film is not UV fast.
If left outside or in direct sunlight, the colour will deteriorate over time.
Blue overlay uses a UV resistant film, impregnated with special thermosetting mixture of polymers containing amino resins.
We offer a full cutting and processing service
Router, drill, chamfer
or machining
Edges sealed
with external paint
Cut to size &
CNC machined
For more information
| Width (mm) | Lengths (mm) |
|---|---|
| 1220 or 1250 | 2440 / 2500 / 2745 / 2750 / 3000 / 3050 |
| 1500 or 1525 | 2440 / 2500 / 2745 / 2750 / 3000 / 3050 |
Special order
Minimum quantity:
full packs
per thickness & colour
Contact us
for current lead-times
Plies: The number of laminations
1.4mm thick with grain
alternating at 90 degrees
Packing: Quantities shown are
standard mill packing
For special order items
pack quantities can be altered
Smooth Mesh Plywood
UK Importers
Nationwide Delivery
Phenol Smooth Mesh Faced
Birch Plywood
Birch Plywood Core
120g, 240g or 440g Phenolic Film
Smooth Mesh surface with a Smooth Phenol Reverse
Smooth Mesh Two Sides Available
| Thickness | No. of Plies | Small Packing | Large Packing |
|---|---|---|---|
| 6.5mm | 5 ply | 65 sheets | 90 sheets |
| 9mm | 7 ply | 44 sheets | 65 sheets |
| 12mm | 9 ply | 33 sheets | 50 sheets |
| 15mm | 11 ply | 26 sheets | 40 sheets |
| 18mm | 13 ply | 22 sheets | 35 sheets |
| 21mm | 15 ply | 19 sheets | 30 sheets |
| 24mm | 17 ply | 17 sheets | 25 sheets |
| 27mm | 19 ply | 14 sheets | 22 sheets |
| 30mm | 21 ply | 13 sheets | 20 sheets |
| 35mm | 25 ply | 12 sheets | 17 sheets |
| 40mm | 29 ply | 10 sheets | 15 sheets |
Request a Quote
Specifications
Applications
Phenol Overlay
Paper impregnated with phenol resin
Moisture and chemical resistant.
Does not crack
Available in 120g, 220g, 440g
Wear Resistance
Taber Test (EN 438-2)
400 revolutions (120g film)
900 revolutions (240g film)
2,500 revolutions (440g film)
Formaldehyde
In accordance with the standard EN 13986
the formaldehyde emission meets the Class E1 requirements
(test method EN 717 Part 2)
Moisture Content
10% (+/- 2%) to EN315 and DIN 68705
Mesh Pattern
Small mesh: 4.5 mesh per 1cm
Large mesh: 2.5 mesh per 1cm
Edge Sealing
Exterior acrylic paint to prevent moisture ingress. To match phenol face colour
Bonding
EN314-3 class 3 exterior conditions
Dark brown glue-line, phenol resin
Weight
640-700 kg/M3
for Smooth Mesh Faced Birch Plywood
Our coated panels...
| Width (mm) | Lengths (mm) |
|---|---|
| 1220 or 1250 | 2440 / 2500 / 2745 / 2750 / 3000 / 3050 |
| 1500 or 1525 | 2440 / 2500 / 2745 / 2750 / 3000 / 3050 |
Sizes available from the mill
Bespoke cut sizes also available
Availability
Cutting Service
Thickness & Packing
Panel Sizes
Colours
Black - Dark Brown - Light Brown
Silver Grey - Light Grey - Blue - Green - Yellow
We recommend specifying for commercial and light industrial applications
Minor visual defects (rippling, blemishes, overlaps) are permitted in the grading rules
Standard phenol film is not UV fast
If left outside or in direct sunlight, the colour will deteriorate over time
Blue overlay uses a UV resistant film
impregnated with special thermosetting mixture of polymers containing amino resins
Available on forward order only in full pack volumes
We offer a full cutting and processing service
Router, drill, chamfer or machining
Edges are sealed with external paint
Cut to size & CNC machined panels
More information on cutting & machining
Special order
Minimum quantity:
full packs per thickness and colour
Contact us for current lead-times
Vehicle Flooring
Durable hard wearing surface with high wear resistance. Used on trailer beds / trailer floors
Joinery
Decorative & visually attractive
for high-end joinery work
Stage Floors
Available in thick panels
Cut to size for metal frameworks
Excellent strength to weight ratio
Case Making
Smooth textured, uni-directional pattern
Plies
The number of laminations
1.4mm thick, laid-up with
grain alternating at 90 degrees
Packing
Quantities are standard mill packing
For special order items
pack quantities can be altered
Smooth Mesh
Textured Pattern
Functional
Decorative
Hard Wearing
