Riga Trans Plywood

UK Importers

Nationwide Delivery


Birch Plywood Panels

with Enhanced Anti-slip Pattern

Highest Demanding Flooring Applications

Birch Plywood Core

Riga Trans has a 350g Phenolic Film

Riga Trans "Heavy" has a 440g Phenol Film

Hot pressed using special plates


Smooth Phenol Reverse

Width (mm) Lengths (mm)
1220 or 1250 2440 / 2500 / 3000 / 3050
1500 or 1525 2500 / 3000 / 3050 / 3600
2150 3850


Plywood Thickness No. of Plies Small Packing Large Packing
9mm 7 ply 44 sheets 65 sheets
12mm 9 ply 33 sheets 50 sheets
15mm 11 ply 26 sheets 40 sheets
18mm 13 ply 22 sheets 35 sheets
21mm 15 ply 19 sheets 30 sheets
24mm 17 ply 17 sheets 25 sheets
27mm 19 ply 14 sheets 22 sheets
30mm 21 ply 13 sheets 20 sheets
35mm 25 ply 12 sheets 17 sheets



Request a Quote

Specifications

Applications

for Riga Trans Birch Plywood

Our coated panels...







Availability

Cutting Service

Thickness & Packing

Panel Sizes

Sizes available from the mill

Bespoke cut sizes also available

Colours

Only Available in Dark Brown

Riga Trans Heavy Plywood Panel

We offer a full cutting and processing service

Router, drill, chamfer or machining

 Edges are sealed with external paint

Cut to size & CNC machined panels

For more information on our cutting & machining services

Special order

Minimum quantity: full packs per thickness

Contact us for current lead-times

Overlay

Phenolic resin film hot pressed onto surface

Moisture and chemical resistant. Does not crack

Available in 350g (Riga Trans) and 440g (Riga Trans Heavy)

Formaldehyde

In accordance with the standard EN 13986

the formaldehyde emission meets the Class E1 requirements

(test method EN 717 Part 2)

Wear Resistance

Taber Test (EN 438-2)

Riga Trans: 1,500 revolutions

Riga Trans Heavy 5,000 revolutions

Rolling Test (300kg load) up to 6,000 cycles

Moisture Content

10% (+/- 2%) to EN315 and DIN 68705

Edge Sealing

Exterior acrylic paint to prevent moisture ingress

To match phenol face colour

Bonding

EN314-3 class 3 exterior conditions

Dark brown glue-line, phenol resin

Weight

640-700 kg/M3

Slip Rating

Excellent surface friction increases anti-alip resistance

Exceeds the highest R13 class - according to DIN 51130

Vehicle Flooring

Durable hard wearing surface with high wear resistance

Use on truck flooring, trailer beds / trailer floors

Transport

Sea Transport: cargo shipping - container floors

Rail Transport: cargo wagons

Platforms

Loading platforms, scaffolding, pier surfaces

Where high wear resistance and good anti-slip properties are important

Flooring

Stage Floors & Industrial Flooring

Available in thick panels - excellent anti-slip properties

or contact us

01992 410333

panels@spp.co.uk

Plies

The number of laminations

1.4mm thick, laid-up with grain alternating at 90 degrees

Packing

Quantities shown are standard mill packing

For special order items, pack quantities can be altered

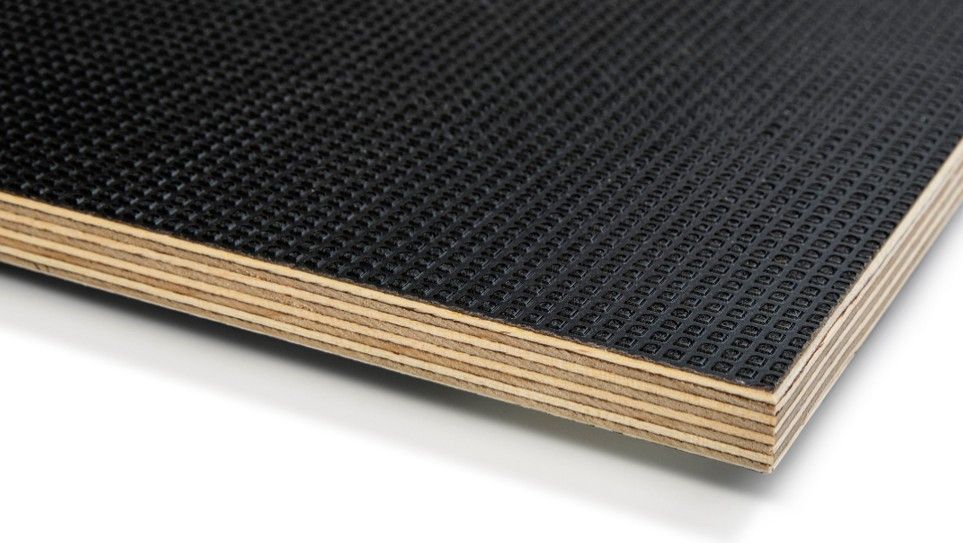

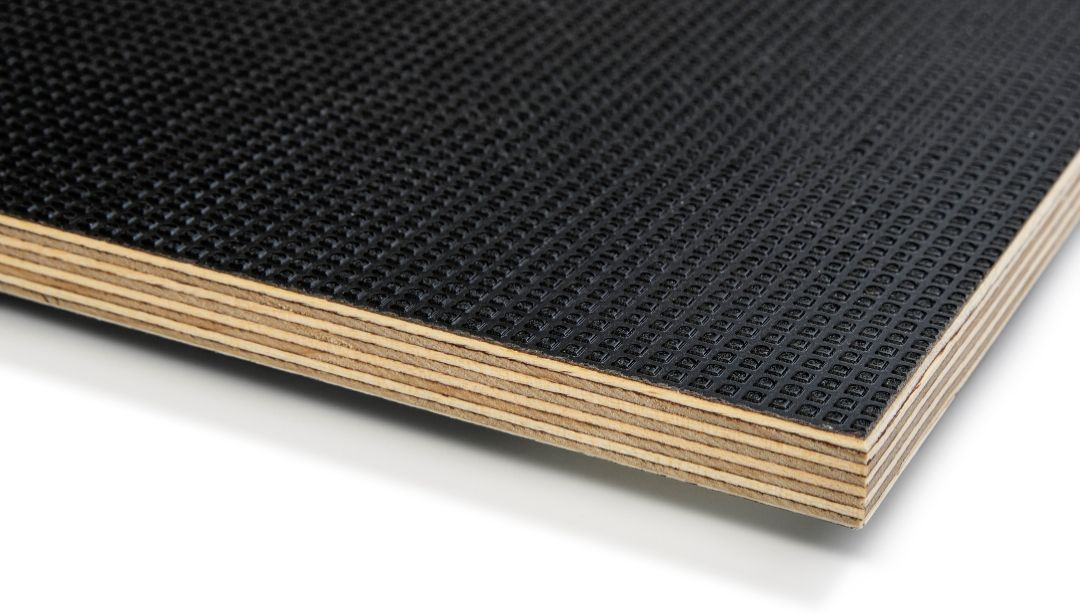

Riga Trans Plywood Panel in Dark Brown

Durable

Hard Wearing

Abrasive Coating

Riga Trans

Plywood

UK Importers



Nationwide Delivery

Birch Plywood

 with Enhanced

Anti-slip Pattern


Highest Demanding

Flooring Applications

Durable

Hard Wearing

Abrasive Coating


Birch Plywood Core

Hot pressed phenol film

using special plates


Phenol Weight:

Riga Trans: 350g

Riga Trans "Heavy" 440g


Smooth Phenol Reverse

Dark Brown Phenol Smooth Mesh Faced Plywood Panel



Thick No. of Plies Small Packing Large Packing
9mm 7 ply 44 sheets 65 sheets
12mm 9 ply 33 sheets 50 sheets
15mm 11 ply 26 sheets 40 sheets
18mm 13 ply 22 sheets 35 sheets
21mm 15 ply 19 sheets 30 sheets
24mm 17 ply 17 sheets 25 sheets
27mm 19 ply 14 sheets 22 sheets
30mm 21 ply 13 sheets 20 sheets
35mm 25 ply 12 sheets 17 sheets


Request a Quote

Specifications

Applications

Overlay

Phenolic resin film hot pressed onto surface

Moisture and chemical resistant. Does not crack

Available in 350g (Riga Trans)

and 440g (Riga Trans Heavy)

Wear Resistance

Taber Test (EN 438-2)

Riga Trans: 1,500 revolutions

Riga Trans Heavy 5,000 revolutions

Rolling Test (300kg load) up to 6,000 cycles

Formaldehyde

In accordance with the standard EN 13986

 the formaldehyde emission meets the Class E1 requirements (test method EN 717 Part 2)

Edge Sealing

Exterior acrylic paint to prevent moisture ingress

To match phenol face colour

Slip Rating

Excellent surface friction

increases anti-alip resistance


Exceeds the highest R13 class

according to DIN 51130

Weight

640 - 700 kg/M3

Moisture Content

10% (+/- 2%) to EN315 and DIN 68705

Bonding

EN314-3 class 3 exterior conditions

Dark brown glue-line, phenol resin

Vehicle Flooring

Durable hard wearing surface

High wear resistance

Used on trailer beds / trailer floors

Transport

Sea Transport: cargo shipping - container floors

Rail Transport: cargo wagons

Flooring

Stage Floors & Industrial Flooring

Available in thick panels

Excellent anti-slip properties

Platforms

Loading platforms, scaffolding, pier surfaces

Where high wear resistance and good anti-slip properties are important

for Riga Trans

Birch Plywood

Our coated panels




Availability

Cutting Service

Thickness

& Packing

Panel Sizes

Sizes available from the mill

Bespoke cut sizes also available

Colours

Only Available

in Dark Brown

Riga Trans Plywood

We offer a full cutting and processing service


Router, drill, chamfer

or machining


 Edges sealed

with external paint

Cut to size &

CNC machined

For more information

Width (mm) Lengths (mm)
1220 or 1250 2440 / 2500 / 3000 / 3050
1500 or 1525 2500 / 3000 / 3050 / 3600
2150 3850

Special order

Minimum quantity:

 full packs per thickness



Contact us

for current lead-times


Plies: The number of laminations

1.4mm thick with grain

alternating at 90 degrees

Packing: Quantities shown are

 standard mill packing


For special order items

pack quantities can be altered


Riga Trans Plywood

UK Importers

Nationwide Delivery


Birch Plywood Panels

with Enhanced Anti-slip Pattern

Highest Demanding Flooring Applications

Birch Plywood Core

Riga Trans has a 350g Phenolic Film

Riga Trans "Heavy" has a 440g Phenol Film

Hot pressed using special plates


Smooth Phenol Reverse



Plywood Thickness No. of Plies Small Packing Large Packing
9mm 7 ply 44 sheets 65 sheets
12mm 9 ply 33 sheets 50 sheets
15mm 11 ply 26 sheets 40 sheets
18mm 13 ply 22 sheets 35 sheets
21mm 15 ply 19 sheets 30 sheets
24mm 17 ply 17 sheets 25 sheets
27mm 19 ply 14 sheets 22 sheets
30mm 21 ply 13 sheets 20 sheets
35mm 25 ply 12 sheets 17 sheets



Request a Quote

Specifications

Applications

Overlay

Phenolic resin film hot pressed onto surface

Moisture and chemical resistant.

Does not crack

Available in 350g (Riga Trans)

 and 440g (Riga Trans Heavy)

Slip Rating

Excellent surface friction increases anti-alip resistance

Exceeds the highest R13 class - according to DIN 51130

Wear Resistance

Taber Test (EN 438-2)

Riga Trans: 1,500 revolutions

Riga Trans Heavy 5,000 revolutions

Rolling Test (300kg load) up to 6,000 cycles

Moisture Content

10% (+/- 2%) to EN315 and DIN 68705

Wear Resistance

Taber Test (EN 438-2)

Riga Trans: 1,500 revolutions

Riga Trans Heavy 5,000 revolutions

Rolling Test (300kg load) up to 6,000 cycles

Edge Sealing

Exterior acrylic paint to prevent moisture ingress. To match phenol face colour

Bonding

EN314-3 class 3 exterior conditions

Dark brown glue-line, phenol resin

Weight

640-700 kg/M3

for Riga Trans Birch Plywood

Our coated panels...






Width (mm) Lengths (mm)
1220 or 1250 2440 / 2500 / 3000 / 3050
1500 or 1525 2500 / 3000 / 3050 / 3600
2150 3850

Sizes available from the mill

Bespoke cut sizes also available

Availability

Cutting Service

Thickness & Packing

Panel Sizes

Colours

Only Available in Dark Brown

Riga Transport Plywood

We offer a full cutting and processing service

Router, drill, chamfer or machining

 Edges are sealed with external paint


Cut to size & CNC machined panels

More information on cutting & machining

Special order

Minimum quantity:

full packs per thickness

Contact us for current lead-times

Vehicle Flooring

Durable hard wearing surface with high wear resistance. Use on truck flooring, trailer beds / trailer floors

Transport

Sea Transport:

Cargo shipping - container floors

Rail Transport: cargo wagons

Flooring

Stage Floors & Industrial Flooring

Available in thick panels - excellent anti-slip properties

Platforms

Loading platforms, scaffolding, pier surfaces

Where high wear resistance and good anti-slip properties are important

or contact us

01992 410333

panels@spp.co.uk

Plies

The number of laminations

1.4mm thick, laid-up with

grain alternating at 90 degrees

Packing

Quantities are standard mill packing

For special order items

pack quantities can be altered

Riga Trans Plywood Panel in Dark Brown

Durable

Hard Wearing

Abrasive Coating
